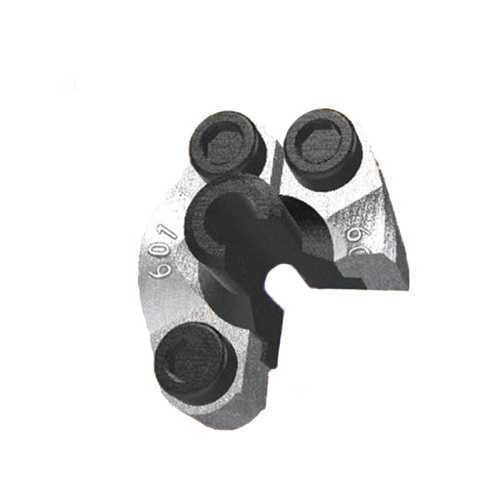

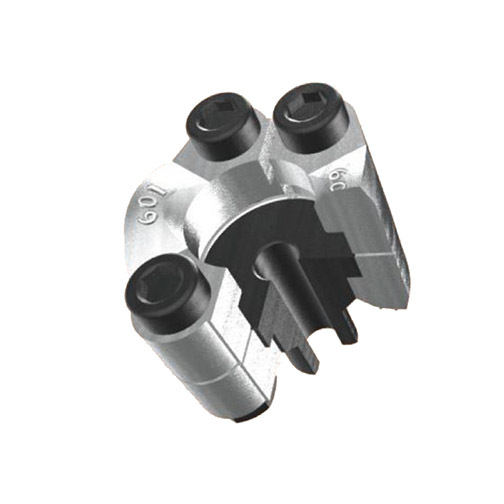

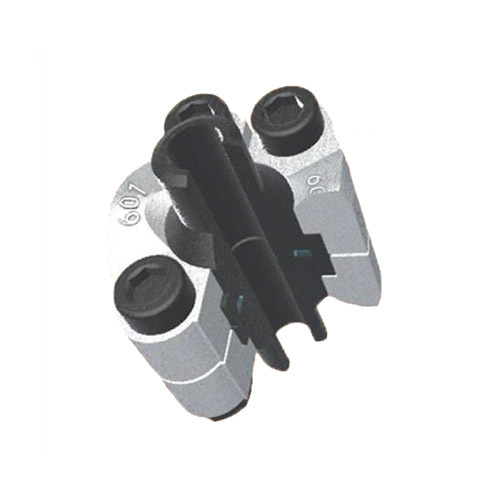

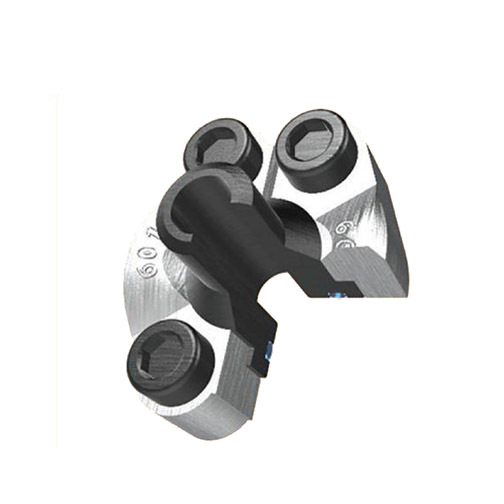

SAE Flange and Welded Pipe Assembly – C
We supply high-quality SAE split and full high-pressure flanges in A/B/C/D/E/F/G/H/V series, including companion flanges and connecting flanges. Our range covers split flanges, integral flanges, right-angle welded, square, tee, socket weld, butt weld, threaded and 24° cone flanges, as well as standard and non-standard SAE welded pipe connectors and flange covers. We also provide welded, ferrule and flared hydraulic pipe fittings. Available materials include carbon steel (20#, 45#, Q235, C20, C45, CQ235) and stainless steel (304, 316, 316L, 316Ti). Widely used in heavy vehicles, construction machinery, petroleum, coal, power, metallurgy, chemical, shipbuilding and transportation, our products are reliable and well received by customers worldwide.
Product Description：
SAE法兰连接就是把两个管道、管件或器材，先各自固定在一个SAE法兰盘上，两个SAE法兰盘之间，加上SAE法兰垫，用螺栓紧固在一起，完成了连接。有的管件和器材已经自带SAE法兰盘，也是属于SAE法兰连接。SAE法兰连接是管道施工的重要连接方式。
SAE法兰连接的六种类型如下：
ASF——附接法兰的形式（Flange connection），即单个法兰（带O型圈），另一端为设备。
BSF——连接法兰的形式（Flange-type coupling），即成对法兰（一个带O型圈）。
CSF——不带接管的法兰（Flange-type coupling without flanged welding neck）。对于此种类型不太理解，不知如何使用。从SN532标准的图示上看，似乎BSF法兰中去掉一个焊接头。,与软管进行连接的。
DSF——带法兰盖的连接法兰（Flange-type coupling with blind collar），即成对法兰中的一个为盲板（O型圈在盲板上）。
ESF——带法兰盖的附接法兰（Flange connection with blind collar），即单个法兰盲板（带O型圈），另一端为设备。
FSF——不带接管的附接法兰（Flange connection without flanged welding neck）
