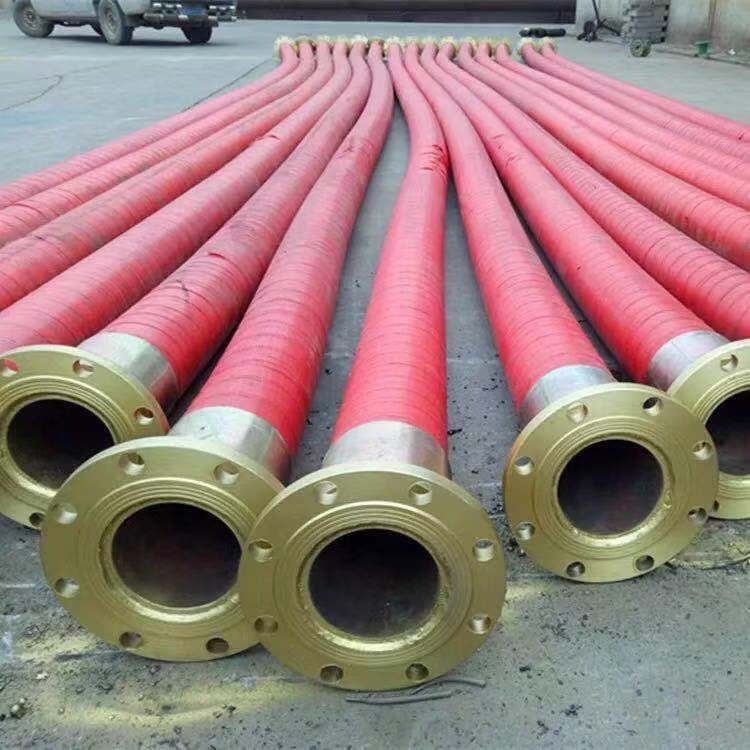

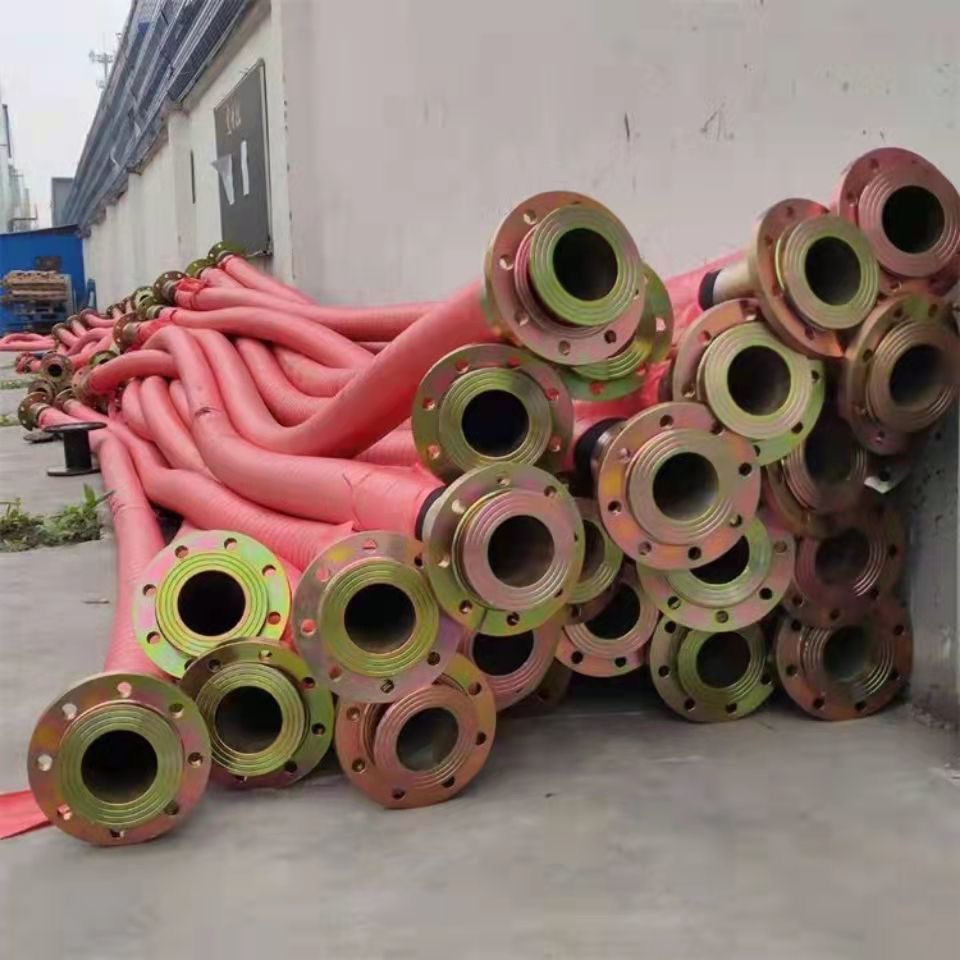

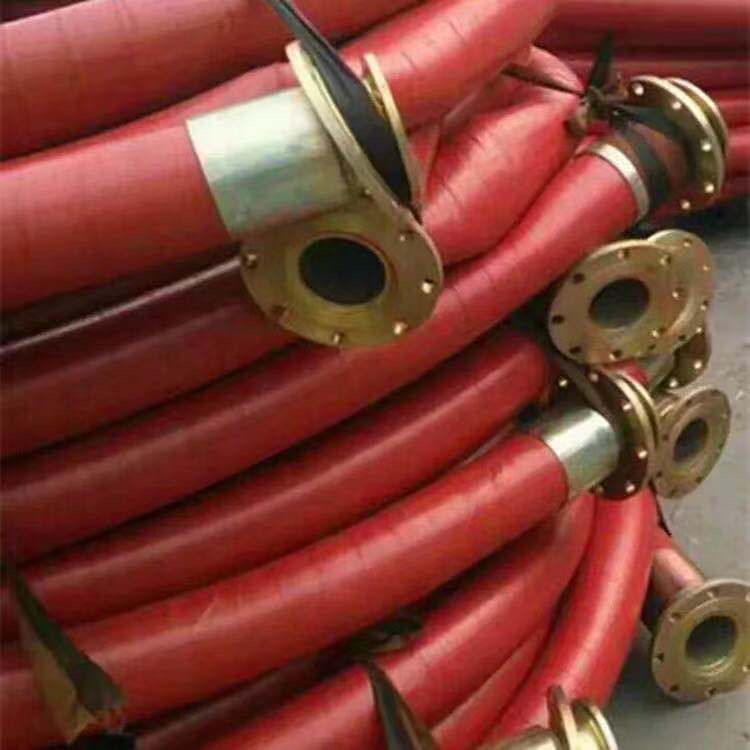

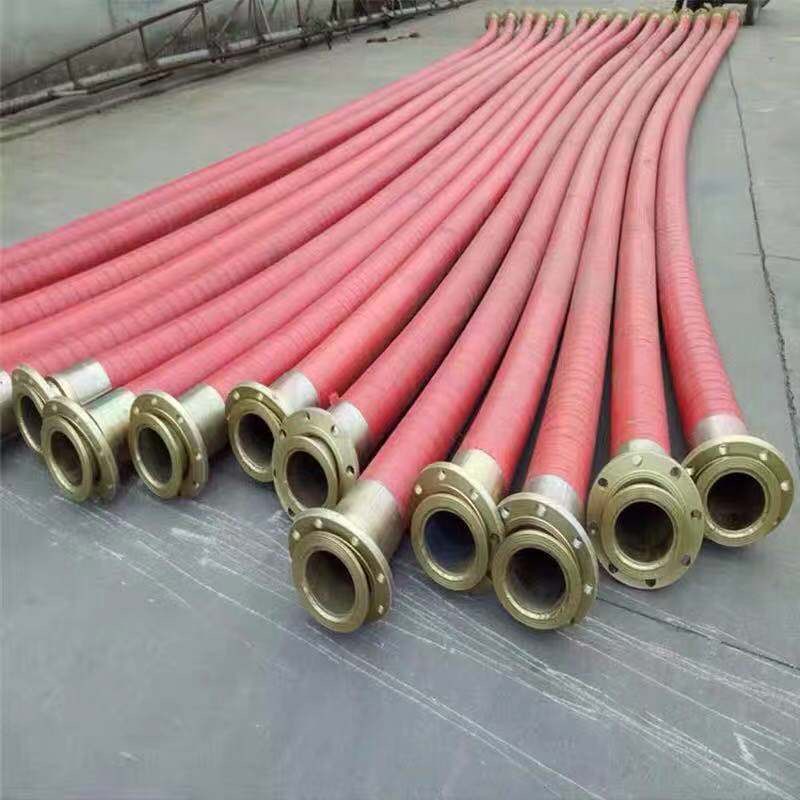

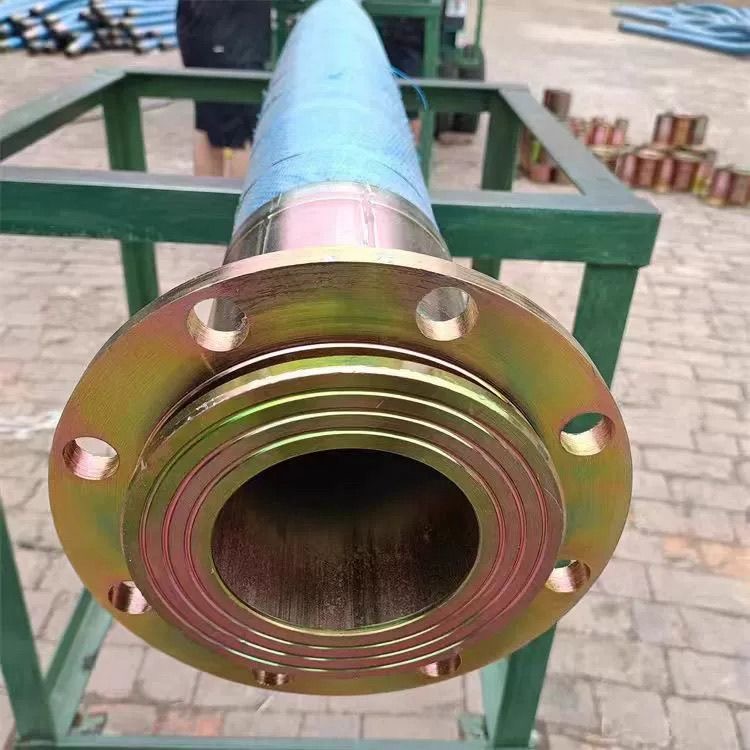

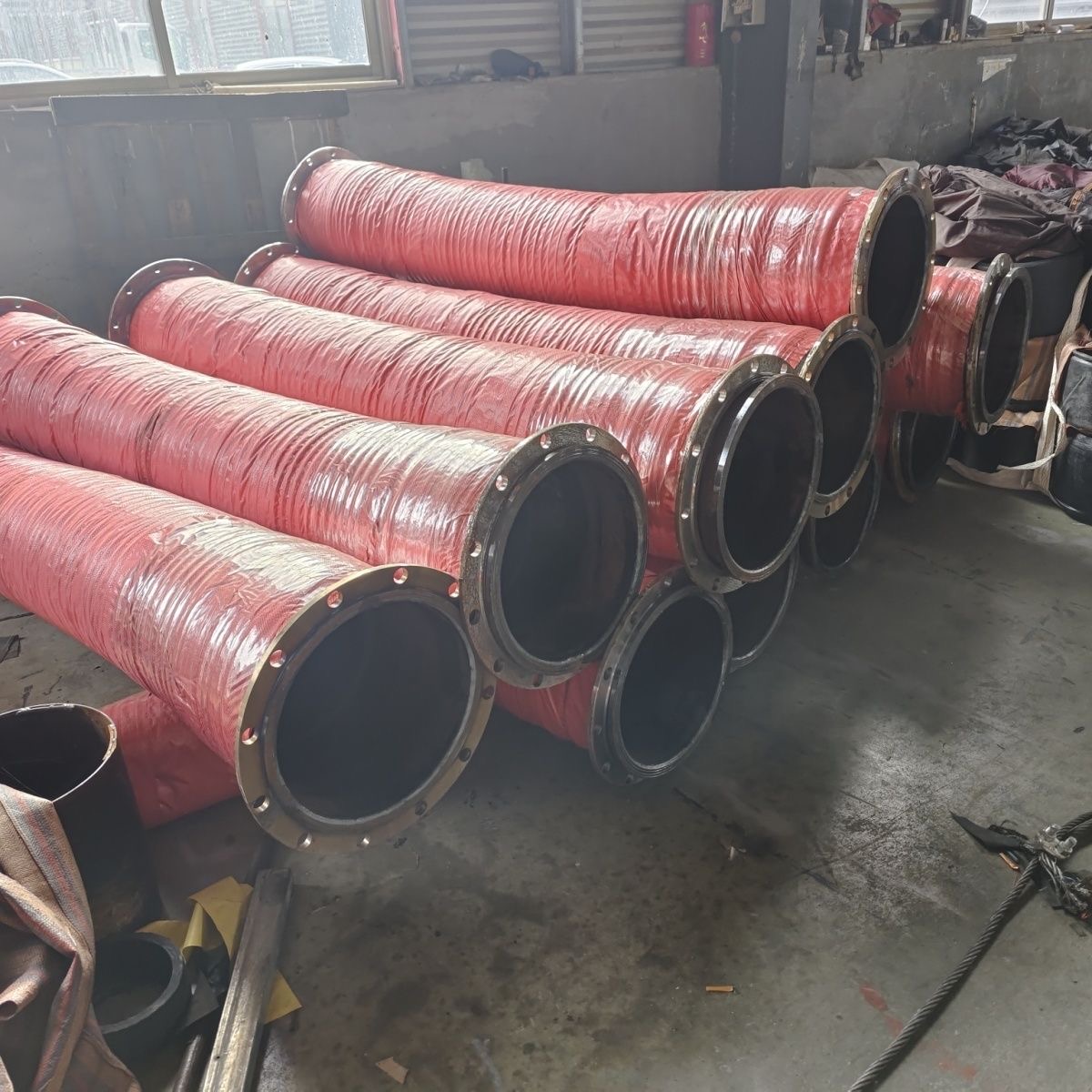

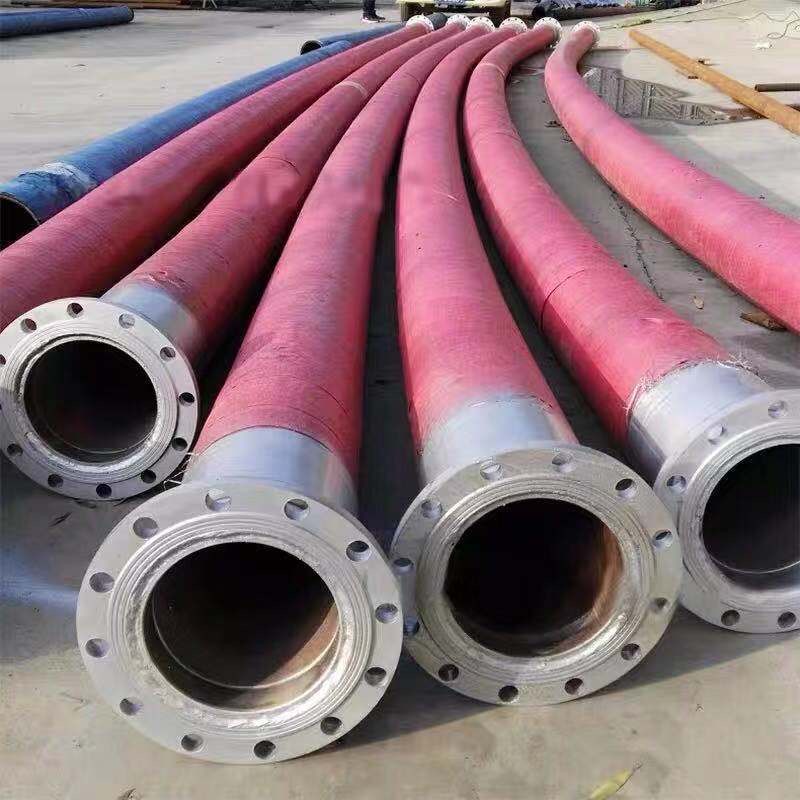

Large Diameter Drainage Rubber Hose
Product Description：
Product Overview】
The large-diameter drainage rubber hose is a special large-flow water delivery and drainage rubber hose for large-scale infrastructure projects, farmland water conservancy, mine metallurgy and urban flood control emergency. Specially designed for long-distance water supply and drainage, sediment sewage transportation, negative pressure suction and positive pressure discharge complex working conditions. Adopting multi-layer integrated vulcanization process, it is composed of wear-resistant and corrosion-resistant inner rubber layer, single or multi-layer cloth winding reinforcement layer, high-strength cord braided skeleton layer, external metal spiral wire reinforcement layer and weather-resistant outer rubber layer. Tightly bonded without delamination, bulging or cracking after long-term use. Excellent tensile resistance, flex fatigue resistance, acid and alkali corrosion resistance, weather and aging resistance, stable operation in outdoor and high and low temperature environments for a long time. Customizable non-standard diameter, length and flange joint specifications, standard flange connection for convenient installation and tight sealing, essential pipeline product for large-scale water supply, drainage and industrial cooling systems.
【Product Structure & Customization Instructions】
The large-diameter drainage hose has a scientifically stable structure, reinforced with multi-layer reinforcement and metal spiral wire, effectively improving negative pressure collapse resistance and overall pressure resistance, no pipe collapse during suction and no deformation during discharge. High customization flexibility: small diameter below φ25 can be produced up to 100 meters per single piece without intermediate connection; medium and large diameter above φ32 can be customized to any length according to construction needs; conventional maximum diameter up to 1000mm, super large special diameter can be specially customized to meet super large-flow engineering drainage needs.
【Flange Specification Standard Parameter Table】
|
Nominal Inner Diameter(mm)
|
Inner Rubber Thickness(mm)
|
Flange Outer Diameter D1(mm)
|
Flange Thickness t1(mm)
|
Joint Thread Thickness(mm)
|
Bolt Circle Diameter(mm)
|
Bolt Quantity
|
Bolt Hole Diameter(mm)
|
|---|---|---|---|---|---|---|---|
|
200
|
10
|
205±3
|
320(+3/-2)
|
12±2
|
280±1.0
|
8
|
23±1
|
|
250
|
10
|
254±3
|
385(+3/-2)
|
12±2
|
345±1.0
|
12
|
23±1
|
|
300
|
12
|
305±5
|
430(+3/-2)
|
15±2
|
390±1.0
|
12
|
25±1
|
|
350
|
12
|
338±5
|
480(+3/-2)
|
19±2
|
435±1.0
|
16
|
25±1
|
|
400
|
15
|
388±5
|
540(+3/-2)
|
22±2
|
495±1.0
|
16
|
28±1
|
|
510
|
15
|
510±5
|
710(+3/-2)
|
22±2
|
650±1.0
|
18
|
28±1
|
|
560
|
18
|
560±5
|
765(+3/-2)
|
25±2
|
690±1.0
|
18
|
30±1
|
|
610
|
20
|
610±5
|
814(+3/-2)
|
22±2
|
750±1.0
|
20
|
32±1
|
|
630
|
20
|
630±5
|
834(+3/-2)
|
25±2
|
765±1.0
|
20
|
30±1
|
|
660
|
20
|
660±5
|
870(+3/-2)
|
25±2
|
780±1.0
|
24
|
30±1
|
|
700
|
22
|
700±5
|
905(+3/-2)
|
25±2
|
840±1.0
|
24
|
27±1
|
|
710
|
22
|
710±5
|
930(+3/-2)
|
28±2
|
860±1.0
|
24
|
27±1
|
|
760
|
25
|
760±5
|
990(+3/-2)
|
30±2
|
900±1.0
|
24
|
30±1
|
|
800
|
25
|
800±5
|
1050(+3/-2)
|
32±2
|
970±1.0
|
32
|
30±1
|
|
840
|
25
|
840±5
|
1090(+3/-2)
|
32±2
|
1010±1.0
|
32
|
30±1
|
|
860
|
25
|
860±5
|
1090(+3/-2)
|
32±2
|
1010±1.0
|
32
|
30±1
|
【Core Performance Advantages】
1. Dual positive and negative pressure adaptation: reinforced with multi-layer and metal spiral wire, no collapse under negative pressure and no deformation under positive pressure, suitable for suction and discharge dual operation; 2. High pressure and explosion proof: small deformation under pressure, tensile and flex fatigue resistant, bursting pressure is three times of working pressure, no pipe bursting and leakage under high pressure; 3. Wear, corrosion and aging resistant: inner rubber resists sediment scouring and acid-base corrosion, outer rubber resists weather and UV aging, no cracking and hardening after long-term outdoor use; 4. Flexible and easy installation: lightweight and good bending performance, suitable for complex terrain laying, flange connection with tight sealing, easy to install and save labor; 5. High conveying efficiency: smooth inner wall with low resistance and large flow, high efficiency for long-distance water delivery and flood control drainage; 6. Complete customized types: ordinary non-joint type and flange joint type with electrostatic conductive function, meeting industrial explosion-proof needs.
【Application Scope】
Widely used in large-scale engineering water supply and drainage in multiple industries. Mining and agriculture for mining operation, farmland irrigation, drought and flood drainage, neutral liquid suction and discharge; construction engineering for temporary drainage, tunnel drainage, river dredging and port reclamation; metallurgy industry for steelmaking equipment oxygen delivery and cooling circulating water transportation; urban flood control for municipal emergency drainage, essential pipeline for large-flow water delivery and drainage projects.
【Manufacturer Advantages】
We are a direct professional manufacturer of large-diameter drainage rubber hoses. Factory direct sales without middlemen with favorable price and sufficient stock for fast delivery. Complete flange specifications, supporting super large diameter and non-standard customization. Strict production quality control ensures every hose is pressure-resistant and durable. We accept bulk orders for water conservancy, mining and municipal flood control projects with stable long-term supply and perfect after-sales service, providing one-stop purchasing solution for large-diameter drainage pipelines.
